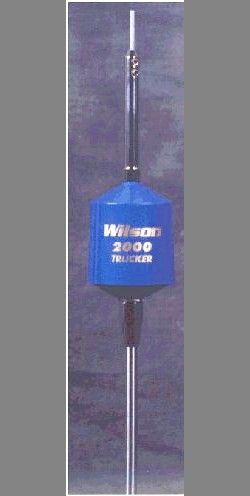

WILSON T-2000 TRUCKER W/ 5" SHAFT (( BLUE ))
Wilson "Trucker 2000" Specifications
Uses Silver Plated 10 gauge, Solid Copper Wire
outperforms copper, nickel, & chrome plating
Easily Handles 3,500 Watts
Large coil housing for increased power handling
Exclusive low loss coil design
Made From High Impact Engineering Thermoplastics
Frequency Range: 26 MHz to 30 MHz
5" Stainless Steel Shaft
49" 17-7 spring stainless steel whip
Can be used as a single antenna or co-phased for dual antennas
3/8" X 24" Standard Threaded Shaft
1 Year Warranty
Trucker 2000
WHY THE Wilson "Trucker 2000" PERFORMS BETTER
The Wilson 2000 Trucker�s higher gain performance is a result of several new design developments that bring you the most powerful CB center loaded antenna available in its price range.
A large portion of the power that goes into a typical loaded CB antenna is lost as heat in the coil and as dielectric heat loss in the plastic inside the coil form. Many CB antennas lose more than 50% of the power put into them. The power is wasted as heat loss and is not radiated as radio waves. Another weak link in other CB antennas is the capacitor used to match the coax to the antenna. This is a cheap and easy way to make the SWR look good, but has lots of power loss, plus blows out when high power is applied to it.
The first priority was to reduce the dielectric loss by removing as much of the plastic inside the coil as possible. This was accomplished by suspending the coil in air, supported only at four small points, 90 degrees apart, in effect removing 95% of the plastic from the inside surface of the coil. This reduced the dielectric loss to a negligible amount.
The second priority was to get rid of the resistive heat loss in the coil. Since most of the RF energy at 27 MHz travels on the surface of the wire, it was decided to increase the surface area by making the diameter of the wire a larger 10 gauge copper. Since silver is a much better conductor than copper, although very expensive, the wire was heavily silver plated. This reduced the resistive loss to a minimum. Any power loss in the coil is practically eliminated in the Wilson 2000 Trucker.
So far you have read about why the Wilson Trucker 2000 performs better, but it is also the most rugged trucker antenna you can buy. It is made with Mobay�s Thermoplastic which costs a lot more, but it�s the best available. All of these are the reasons you get a 1 year warranty and your Wilson Trucker is guaranteed to outperform any CB mobile antenna (except the Wilson Trucker 5000 ) or your money back.
TEST RESULTS: Tests by Dr. Dwight Heim (PHD Electrical Engineering, Professor Emeritus, University of Michigan), show that the WILSON 2000 TRUCKER has 20% more power gain than the Hustler "Red Neck" Super Resonator model RM-11S, and 12% more power gain than the Penetrator II (with comparable shaft lengths).
PERFORMANCE GUARANTEE: The Wilson 2000 Trucker will outperform the CB trucker antenna it replaces or your money back. This guarantee is good for 15 days from the date of purchase at the original purchase point only, and with dated sales receipt.
ANTENNA POWER GAIN : the amount of improvement in power amplification over another antenna. The higher gain antenna will transmit & receive farther, but the actual distance will vary depending on the gain, ground terrain and other environmental factors. Individual test results may vary due to the vehicle's ground plane and matching configuration.
For value and performance, you can't beat a Wilson Antenna
Your Price: $44.10
ID #: 000000000305-509
|
Your Price: $44.10
ID #: 000000000305-509
|
|
