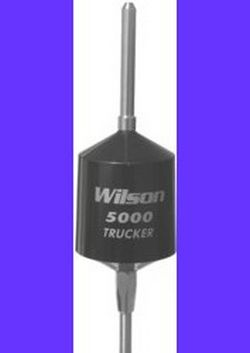

WILSON 5000 TRUCKER
49" STAINLESS STEEL WHIP WITH 10" SHAFT BLACK
Wilson "Trucker 5000" Specifications
3/16" Solid Copper Silver Plated Wire
High Power Ability To Handle 5,000 Watts AM, 20,000 Watts SSB
Absolute Floating Coil Eliminates 95% of Dielectric Loss
Cover Made From High Impact Engineering Mobay Thermoplastics
Frequency Range: 26 MHz to 30 MHz
49" Tapered Spring Stainless Steel Whip
Solid 3/8" Stainless Steel Shaft - Will Not Break
3/8" X 24" Standard Threaded Shaft
1 Year Warranty
Tests Show That Wilson Coils Have The Highest Efficiency Of All CB Trucker Antennas
Dr. Dwight Heim, ( PH.D. Electrical Engineering, Professor Emeritus, University of Michigan ) an independent consultant, conducted a test and comparison on the coils of some of the antennas used by truckers. A chart from his complete tests is shown below.
The Wilson 5000 Trucker CB antenna was shown to have the highest "Q" rating of all antenna coils tested. The "Q" is the standard engineering measurement of efficiency of the antenna coil. The higher the "Q", the higher the efficiency, which means higher performance from that antenna.
The higher rating for the Trucker 5000 coil is a result of proper engineering practices, such as the correct length-to-diameter ratio for the wire size, and a silver plated 3/16" solid copper wire in manufacturing the loading coil.
Extensive research, development and engineering efforts showed that a silver plated 3/16" solid copper wire displayed better performance characteristics and lower losses, giving more power gain, than that of chrome plated hollow tubing. Copper is one of the best RF conductors available - silver is even better. Wilson combined the best of both worlds by choosing 100% pure silver for heavy duty plating of the large solid copper wire.
This combination provides better efficiency and higher performance properties, thereby giving more power gain than any 1/4" or 3/8" chrome plated tubing antenna coil.
The special design of the Trucker 5000 floating coil will not ice up and stop working or break, even in severe winter conditions. This means that using Wilson�s design techniques, the 5000 Trucker will not ice up and short out the windings as is possible with the open coil designed antennas. The highly engineered thermoplastic cover protects the coil from the harsh environmental conditions encountered on the open road. A dirty antenna coil can measurably cut the performance characteristics of that antenna, and one that is covered with ice can cut the performance by as much as 50%.
The Trucker 5000 is available with your choice of shaft lengths of 5" or 10", and mounts into a standard 3/8" X 24" threaded mount. Due to the increased torque applied to the mount with the Trucker 5000, it is recommended that only a stainless steel stud mount be used with the Trucker 5000.
The Trucker 5000 was designed specifically for users who want the best in a high performance antenna with the ability to withstand some serious power. The Wilson 5000 Trucker handles 5000 watts AM, 20,000 watts SSB (ICAS rating).
Wilson�s attention to detail, engineering quality and designs are what helps make the antenna perform so well. The strength of performance and power handling capabilities of the antenna will prove themselves the first time extra power is needed to break through noise and congestion on the air.
Over 25 years of knowledge and engineering experience in the design of antennas makes Wilson the recognized leader in CB Trucker antennas, and the 5000 the choice of truckers.
For the Trucker who deserves the best.......
The only choice is Wilson Antenna
Your Price: $67.37
ID #: 000000000305-550
|
Your Price: $67.37
ID #: 000000000305-550
|
|
